KAMA ESP6 11 Seat Electric Minibus | Gotion Configuration Checks
11 seats including driver
Gotion 41.932 kWh LFP
4865 mm body
3050 mm wheelbase
260 km CLTC reference
Configuration-specific export checks
KAMA ESP6 Electric Minibus: Confirm the Configuration Before Shipment
This KAMA ESP6 product covers the 11-seat passenger minibus with a Gotion 41.932 kWh LFP battery. It is a separate vehicle configuration from the larger ESP7 and ESP8. The reference body measures 4865 × 1715 × 2065 mm, with a 3050 mm wheelbase and a 2 + 3 + 3 + 3 seating plan including the driver.
For importers preparing staff shuttles, hotel transfers or dealer sample vehicles, the useful question is whether the inspected vehicle matches the confirmed order. This page sets out the reference specification and the checks to agree before loading.
ESP6 Gotion Configuration to Verify
| Item | Reference configuration |
|---|---|
| Model | KAMA ESP6 |
| Powertrain | Battery electric |
| Steering in reference specification | Left-hand drive |
| Seat layout | 2 + 3 + 3 + 3; 11 seats including driver |
| Overall dimensions | 4865 × 1715 × 2065 mm |
| Wheelbase | 3050 mm |
| Battery | Gotion lithium iron phosphate (LFP) |
| Battery capacity | 41.932 kWh |
| Reference range | 260 km CLTC; actual route range varies |
| Motor rated / peak output | 35 / 70 kW |
| Reference maximum speed | 95 km/h |
| Charging in reference specification | GB fast / slow charging; confirm destination compatibility |
| Tyres | 185R14LT |
Specifications describe the ESP6 Gotion reference configuration. Final equipment, steering, seat approval and charging arrangements must be confirmed for the ordered vehicle and destination. The quoted CLTC range is a test-cycle reference, not a guaranteed operating range; passenger load, air conditioning, terrain and temperature affect route performance.
Six Checks for the Actual Vehicle
Identity and model: match the VIN, vehicle nameplate, order specification and supplied documents. Record the inspected vehicle rather than relying on brochure photographs.
Battery configuration: compare the pack identification and recorded specification with the confirmed Gotion 41.932 kWh build. A similar-looking passenger van is not evidence of the same battery.
Seating and access: verify the 11-position layout, seat fixings, restraints and door operation against the agreed build and destination requirements.
Charging equipment: inspect the actual inlet and supplied charging equipment. The reference lists GB charging; check electrical requirements and destination compatibility before booking shipment.
Functional condition: agree checks of lights, instruments, brakes, windows, steering assistance and air conditioning. Record any exceptions and corrective action.
Handover and loading: agree keys, equipment, documents, vehicle-condition photographs and a loading plan suited to the actual vehicle dimensions.
Use the Route to Set Acceptance Requirements
The 260 km CLTC figure does not replace a service-route trial. Passenger load, road gradient, ambient temperature, air conditioning and charging opportunities affect operating range. Buyers should define their daily distance and reserve requirement before accepting a configuration for regular shuttle work.
State any required steering arrangement and destination-specific approval documents in the confirmed specification. The reference sheet here is left-hand drive; alternative arrangements must be checked separately. This page does not claim certification, guaranteed clearance or completed inspection of a particular vehicle.
Questions Importers Commonly Need to Resolve
How is ESP6 different from ESP7?
This ESP6 reference is the compact 4865 mm, 11-seat configuration. Keep the larger ESP7’s dimensions, battery and seating details on its own record. Exterior similarity is not a reason to interchange specifications.
Can photographs confirm the battery version?
No. Use the actual vehicle and battery identification records together with the confirmed configuration. Reference photographs are useful for appearance and access, not for proving hidden equipment.
What should we send before discussing a batch?
Provide destination country, required steering, passenger layout, service route, charging conditions and planned quantity. Agree the configuration and inspection scope before preparing a shipment.
Request a Configuration-Specific Inspection Checklist
Share your ESP6 requirement so the model, battery, seating, charging equipment and handover documents can be checked against one agreed specification. Any deviations should be resolved before loading.

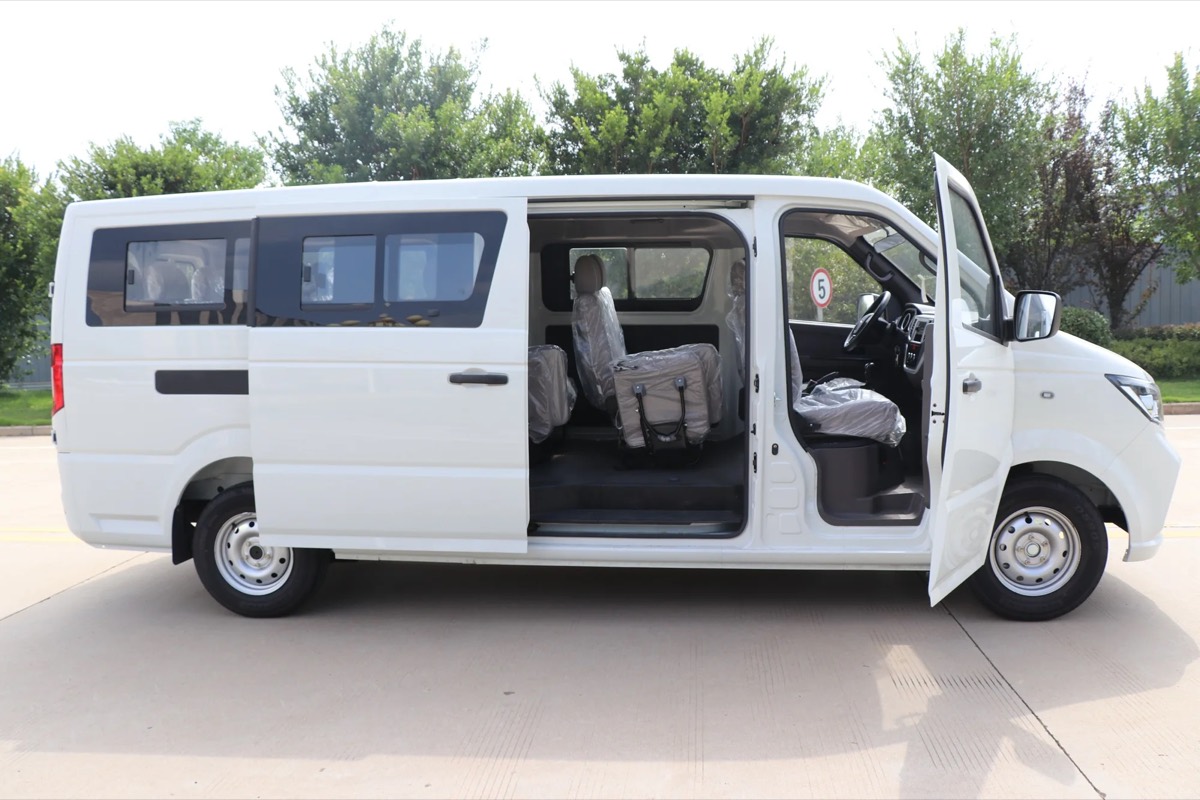

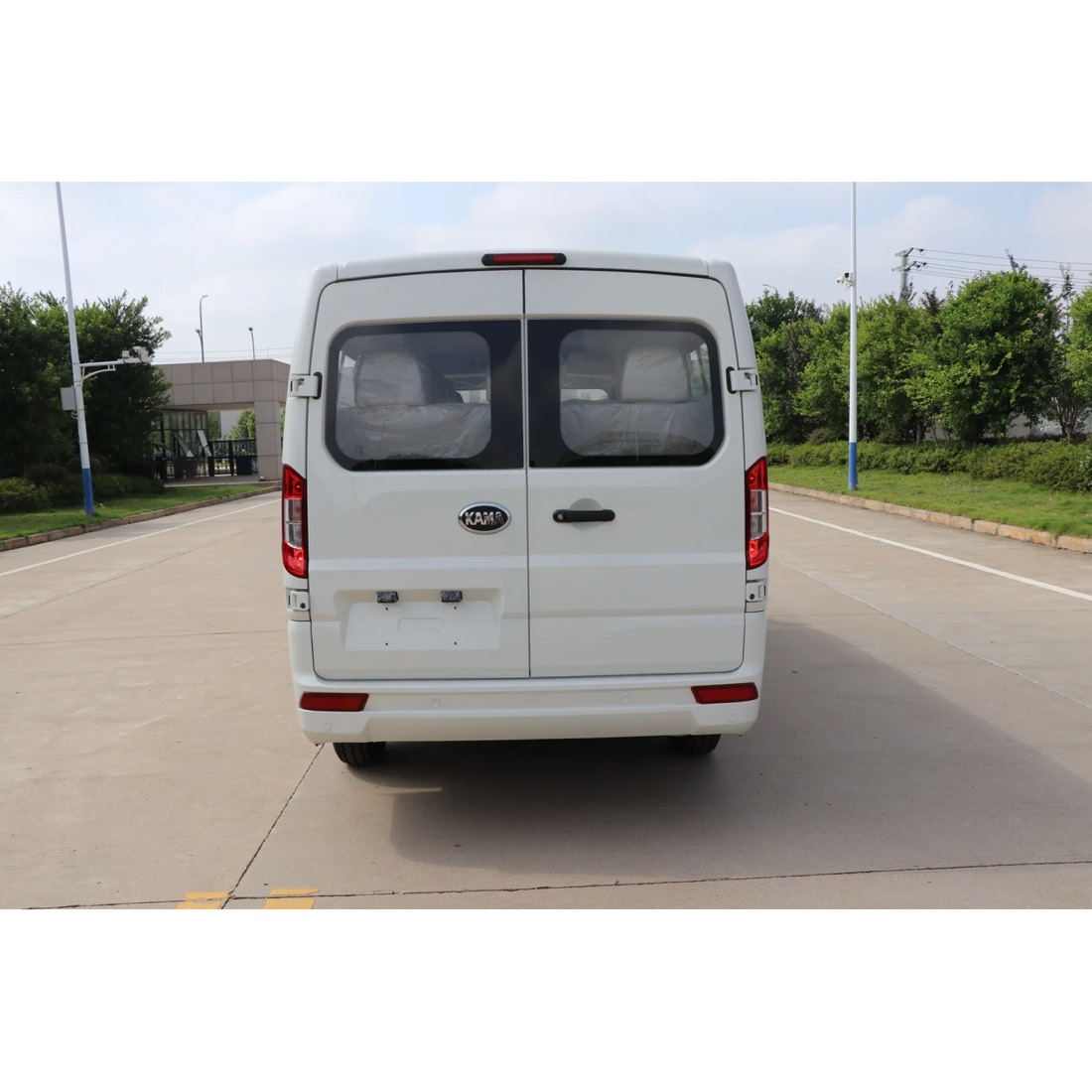

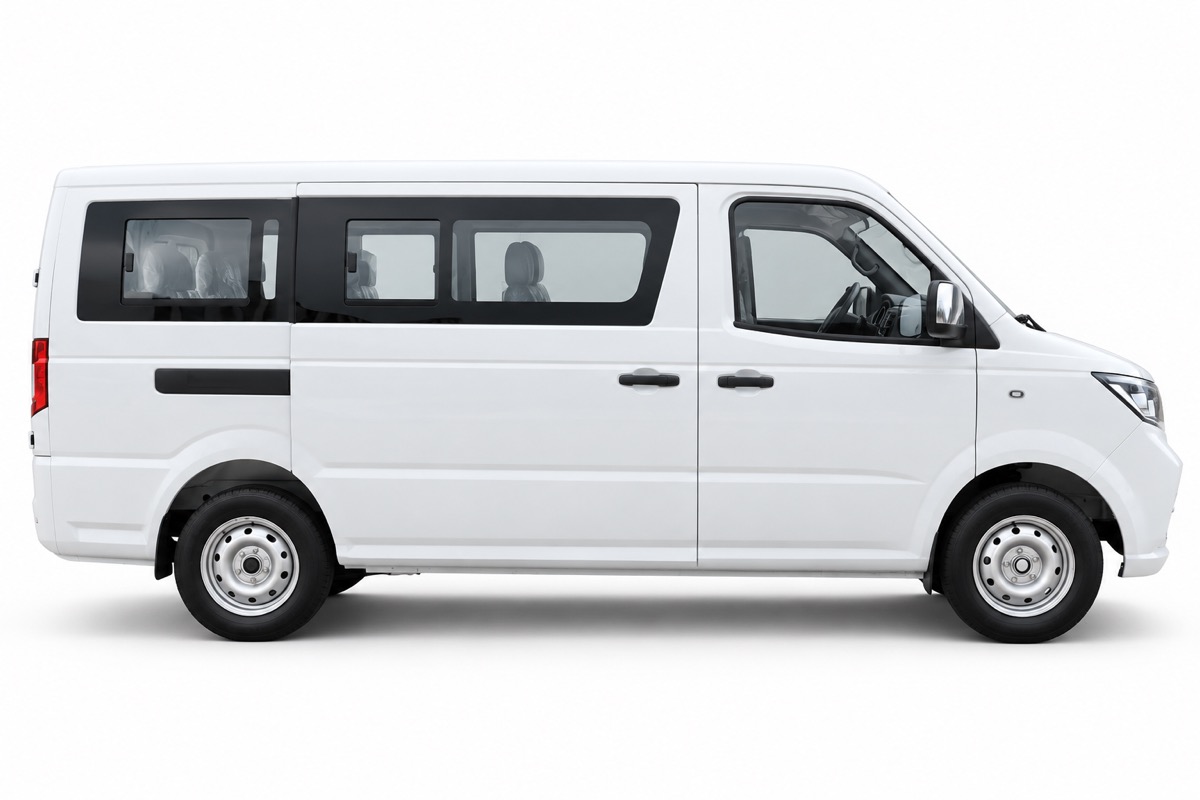

Image note: the white-background main image is an AI illustration based on a local ESP6 reference. Side and rear images are reference photographs. They are not evidence of a completed inspection or the equipment on a particular ordered vehicle.
